Southern Meter Box Catalog

Double-Stack Extensions

Double-Stack Extensions
Description:

These double stack boxes are designed for cold weather regions where meters are to be set deeper into the ground to prevent freezing. They will consist of two bodies stacked on top of each other. The top body will be either 12” or 15” in depth with no rat hole. The bottom section will also be 12” or 15” in depth but will be fixed with a rat hole for the service line.

Box Styles:
Most C.H. Series boxes can be double stacked to accommodate the design need of the engineer. The box specifications will be exactly as the series of box chosen, with the exception of the overall depth, which will be the sum of the two depths.

Lid Styles:
The lid styles will be the same as those available to the series box chosen.

Double-Stack Extensions
Double-Stack Extensions

C.H. 3/4" Concrete Meter Box

C.H. 3/4" Concrete Meter Box
Description:

Provides adequate space for either a 5/8" X 3/4" or 1" meter. The meter can be removed and repaired without disturbing the box. All boxes are made of lightweight aggregate, cement and sand for easier handling and maximum strength. This box has a skid resistant top.  Similar to the 33 Series Box

Weights:
12" Depth - 69 lbs.
Pallet Quantities:
12" Depth - 20/Pallet
C.H. 3/4" Concrete Meter Box

C.H. 3/4” Lid

C.H. 3/4” Lid
Description:

Concrete Lid w/Cast Iron Reader

Design Use: Fits C.H. 3/4” Box or 33 Series

All concrete covers reinforced by wire frame above pin.

Weights:
22 lbs.
C.H. 3/4” Lid

C.H. 5/8" X 3/4 Concrete Meter Boxes

C.H. 5/8" X 3/4 Concrete Meter Boxes
Description:

Provides adequate space for housing either a 5/8" X 3/4" meter and shut-off or a 3/4" meter and shut-off (compatible to the 36 Series). The meter can be removed and repaired without disturbing the meter box. This box has a wider collar at top which gives it additional strength as well as more positive bearing in the soil or sidewalk to keep the box at grade. Box should be mounted at grade for proper performance.  All boxes are made of lightweight aggregate, cement and sand for easier handling and maximum strength. This box has a skid resistant top.

Weights:
12" Depth - 73 lbs.
15" Depth - 88 lbs.
Pallet Quantities:
12" Depth - 24/Pallet
15" Depth - 18/Pallet
C.H. 5/8" X 3/4 Concrete Meter Boxes

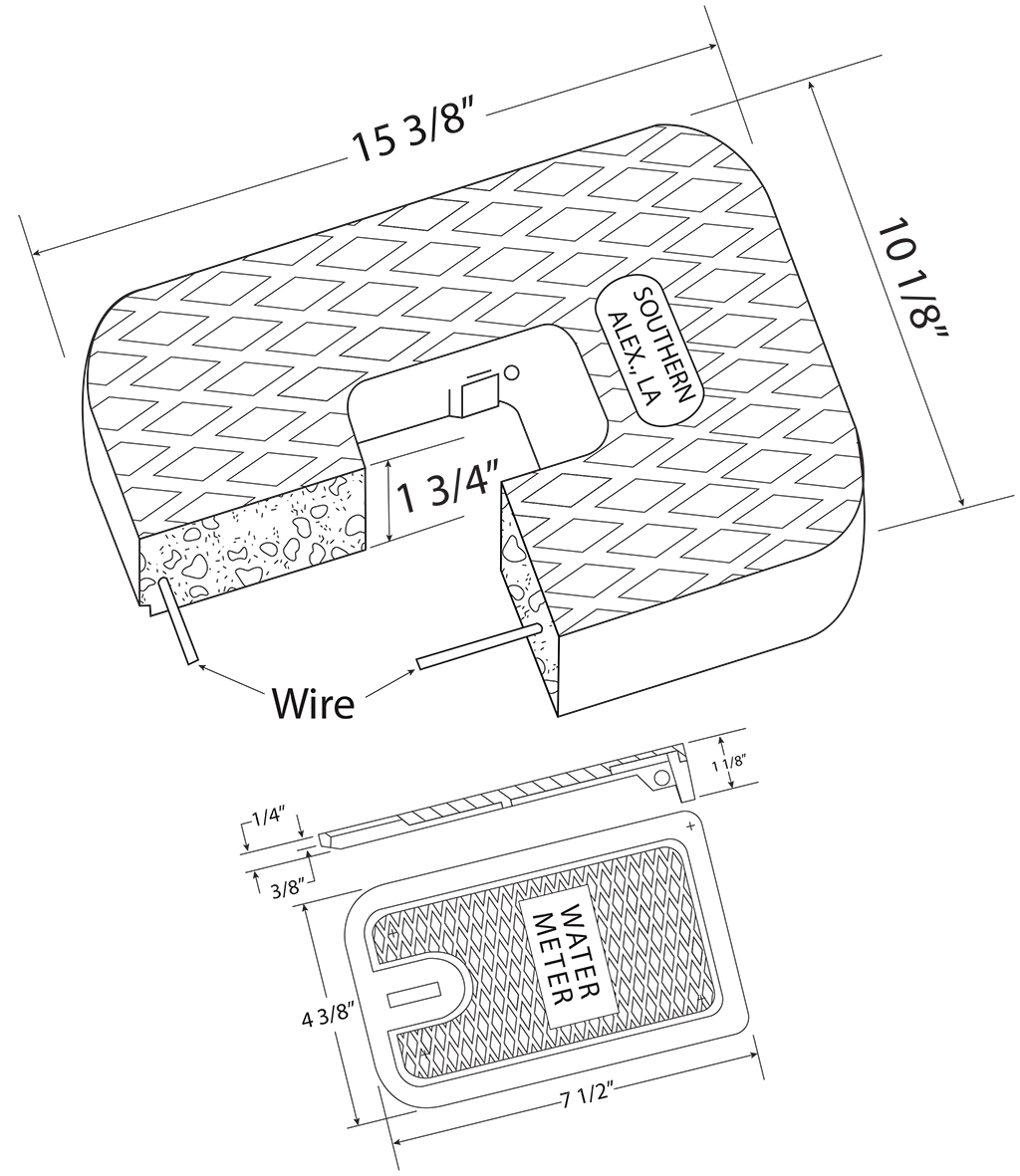

C.H. 5/8” x 3/4” Lid

C.H. 5/8” x 3/4” Lid
Description:

Concrete Lid w/Cast Iron Reader

Design Use: Fits C.H. 5/8” x 3/4” Box or 36 Series

All concrete covers reinforced by wire frame above pin.

Weights:
17 lbs.
C.H. 5/8” x 3/4” Lid

C.H.L.D. 5/8” x 3/4” Lid

C.H.L.D. 5/8” x 3/4” Lid
Description:

Concrete Lid w/Locking Cast Iron Reader

Design Use: Fits C.H. 5/8” x 3/4” Box or 36 Series. Used for locking purposes.

All concrete covers reinforced by wire frame above pin.

Weights:
18 lbs.
C.H.L.D. 5/8” x 3/4” Lid

C.H.S. 5/8 x 3/4” Lid

C.H.S. 5/8 x 3/4” Lid
Description:

A solid one-piece concrete cover with reinforced wire frame.

Design Use: For a standard use in C.H. 5/8” x 3/4” Box or 36 Series.

Weights:
20 lbs.
C.H.S. 5/8 x 3/4” Lid

T. 5/8” x 3/4” Lid

T. 5/8” x 3/4” Lid
Description:

Solid Cast Iron Lid marked either "WATER" OR "SEWER"

Design Use: Fits C.H. 5/8” x 3/4” Box or 36 Series. For heavy traffic use.

Weights:
18 lbs.
T. 5/8” x 3/4” Lid

T.-T.R. 5/8” x 3/4” Lid

T.-T.R. 5/8” x 3/4” Lid
Description:

Solid Cast Iron Lid w/2” T.R. Hole

Design Use: Fits C.H. 5/8” x 3/4” Box or 36 Series. For use in touch read or automatic meter reading (AMR) applications.

Weights:
18 lbs.
T.-T.R. 5/8” x 3/4” Lid

T.H. 3/4” Lid

T.H. 3/4” Lid
Description:

Cast Iron Lid w/Cast Iron Reader

Design Use: Fits C.H. 3/4” Box or 33 Series. For heavy traffic use.

Weights:
20 lbs.
T.H. 3/4” Lid

T.H. 5/8 x 3/4” Overlap Lid

T.H. 5/8 x 3/4” Overlap Lid
Description:

Cast Iron Lid that fits over the top edges of the meter box w/Cast Iron Reader in Center

Design Use: Fits C.H. 5/8” x 3/4” Box or 36 Series as well as similar size plastic boxes.  Design to help reinforce the collar of the box.

Weights:
18 lbs.
T.H. 5/8 x 3/4” Overlap Lid

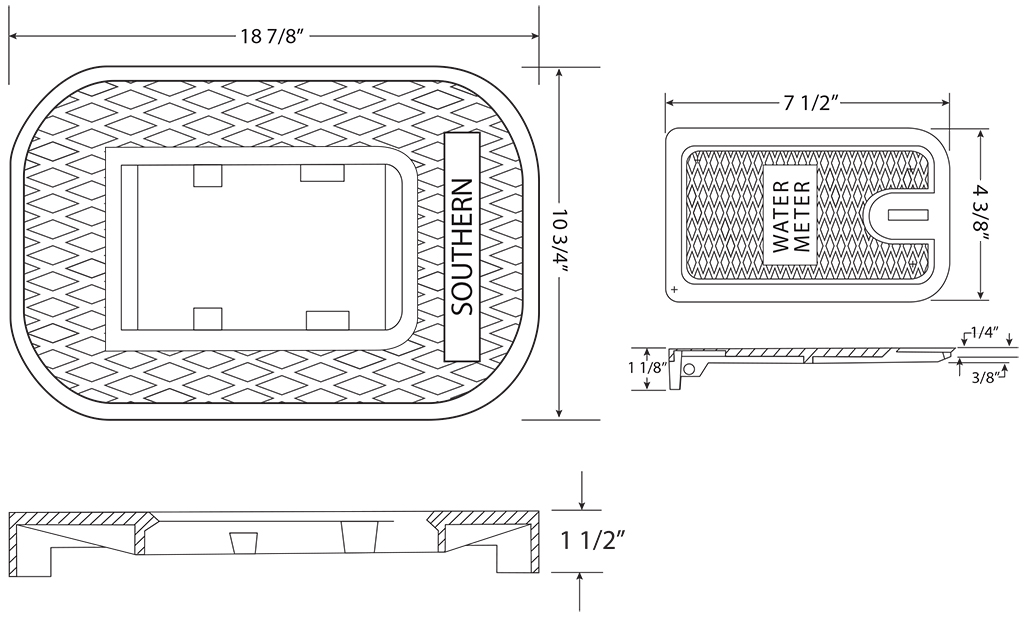

T.H. 5/8” x 3/4” Lid

T.H. 5/8” x 3/4” Lid
Description:

Cast Iron Lid w/Cast Iron Reader

Design Use: Fits C.H. 5/8” x 3/4” Box or 36 Series.

Weights:
18 lbs.
T.H. 5/8” x 3/4” Lid

T.H.L. 5/8” x 3/4” Lid

T.H.L. 5/8” x 3/4” Lid
Description:

Light Weight Cast Iron Lid w/Cast Iron Reader

Design Use: Fits C.H. 5/8” x 3/4” Box or 36 Series.  For use in light traffic areas.

Weights:
14 lbs.
T.H.L. 5/8” x 3/4” Lid

T.S. 5/8 x 3/4” Lid

T.S. 5/8 x 3/4” Lid
Description:

Solid Cast Iron Lid with Lock

Design Use: Fits C.H. 5/8” x 3/4” Box

Weights:
12 lbs.
T.S. 5/8 x 3/4” Lid

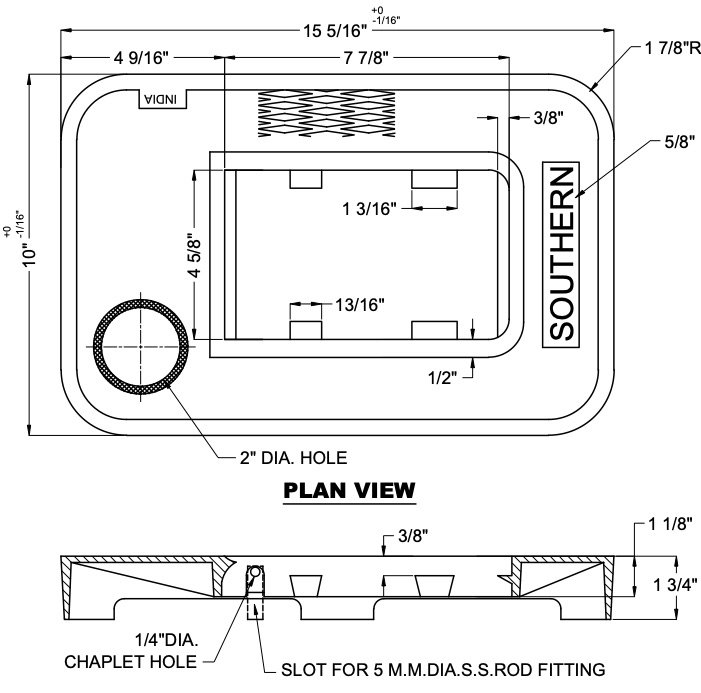

T.T.R.O. 5/8 x 3/4 Lid

T.T.R.O. 5/8" x 3/4" Lid
Description:

Solid Cast Iron Lid w/2" Offset T.R. Hole

Design Use:  Fits C.H. 5/8" x 3/4" Box or 36 Series.  For use in touch read or automatic meter reading (AMR) applications.

Weights:
17
Pallet Quantities:
120
T.T.R.O. 5/8" x 3/4" Lid

T.T.R.O.R. 5/8"x3/4" Lid

T.T.R.O.R. 5/8" x 3/4" Lid
Description:

Solid Cast Iron Lid with Recess and 2" T.R. Hole

Design Use:  Fits C.H. 5/8" x 3/4" Box or 36 Series as well as 10" x 15" Plastic Boxes.  For use in touch read or automatic meter reading (AMR) applications.





Weights:
17
Pallet Quantities:
120
T.T.R.O.R. 5/8" x 3/4" Lid

C.H. 1" Concrete Meter Boxes

C.H. 1" Concrete Meter Boxes
Description:

Is designed to house 1" meter and shut-off. The meter can be removed and repaired without disturbing the meter box. All boxes are made of lightweight aggregate, cement, and sand for easier handling and maximum strength.  Dimensions are similar to the 37 Series.

Weights:
12" Depth - 82 lbs.
15" Depth - 82 lbs.
Pallet Quantities:
12" Depth - 20/Pallet
15" Depth - 15/Pallet
C.H. 1" Concrete Meter Boxes

C.H. 1” Lid

C.H. 1” Lid
Description:

Concrete Lid w/Cast Iron Reader

Design Use: Fits C.H. 1” Box or 37 Series.

All concrete cover reinforced by wire frame above pin.

Weights:
22 lbs.
C.H. 1” Lid

T. 1” Lid

T. 1” Lid
Description:

Solid Cast Iron Lid marked either "WATER" OR "SEWER"

Design Use: Fits C.H. 1” Box or 37 Series.  For heavy traffic areas.

Weights:
24 lbs.
T. 1” Lid

T.-T.R. 1” Lid

T.-T.R. 1” Lid
Description:

Solid Cast Iron Lid w/2” T.R. Hole

Design Use: Fits C.H. 1” Box or 37 Series. For use in touch read or radio read applications.

Weights:
24 lbs.
T.-T.R. 1” Lid

T.H. 1” Lid

T.H. 1” Lid
Description:

Cast Iron Lid w/Cast Iron Reader

Design Use: Fits C.H. 1” Box or 37 Series. For heavy traffic use.

Weights:
20 lbs.
T.H. 1” Lid

C.H. 1 1/2” Concrete Meter Box

C.H. 1 1/2” Concrete Meter Box
Description:

Used for housing a 1 1/2” water meter (compatible to the 38 Series). The meter can be removed and repaired without disturbing the meter box. All boxes are made of lightweight aggregate, cement, and sand for easier handling and maximum strength.  Meter should be installed at grade for proper performance.

Weights:
12” Depth – 124 lbs.
Pallet Quantities:
12” Depth – 12/Pallet
C.H. 1 1/2” Concrete Meter Box

T.H. 1 1/2” Lid

T.H. 1 1/2” Lid
Description:

Cast Iron Lid with Dual Cast Iron Reader

Design Use: Fits C.H. 1 1/2” Box or 38 Series

Weights:
24 lbs.
T.H. 1 1/2” Lid

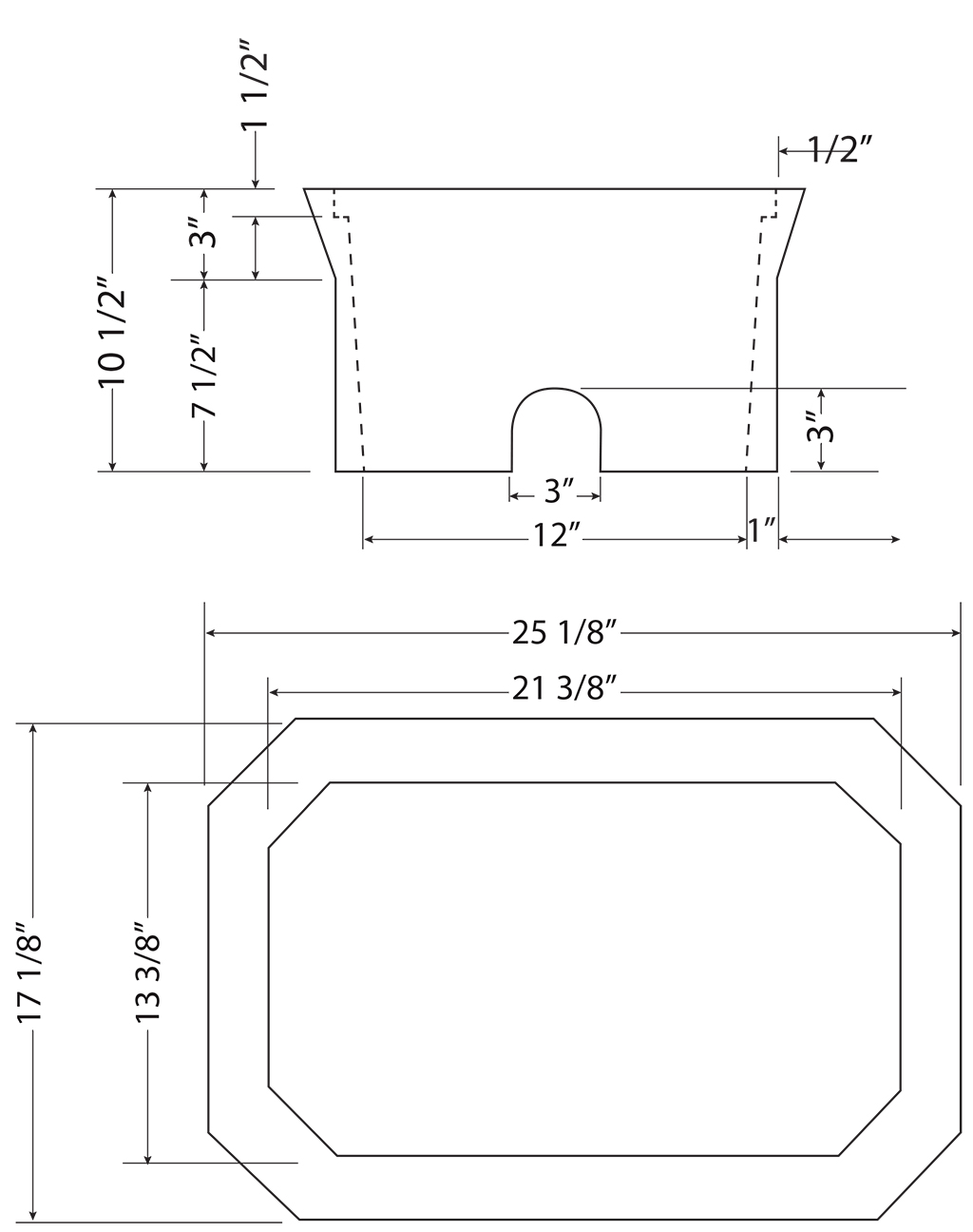

Class B Concrete Meter Box

Class B Concrete Meter Box
Description:

This box was designed for the City of Birmingham Water Works Board. It can accommodate from a 5/8” x 3/4” to a 1 1/2” meter. The meter can be removed and repaired without disturbing the box. The box is constructed of lightweight aggregate, cement, and sand for easier handling and maximum strength.

Weights:
10 1/2” Depth – 68 lbs.
Pallet Quantities:
10 1/2” Depth – 20/Pallet
Class B Concrete Meter Box

T.H.-B

T.H.-B
Description:

Cast Iron Lid w/Cast Iron Reader

Design Use: Fits C.H.-B Box. For heavy traffic use.

Weights:
25 lbs.
T.H.-B

C.H. Dual Concrete Meter Boxes

C.H. Dual Concrete Meter Boxes
Description:

Accommodates a side-by-side installation of two 5/8" X 3/4 meters and shut-offs. This means two houses can be serviced with only one tapping of the main and only one service line from the main to the meter box. All boxes are made of lightweight aggregate, cement, and sand for easier handling and maximum strength. This box has a skid resistant top.

Weights:
12" Depth - 78 lbs.
Pallet Quantities:
12" Depth - 20/Pallet
C.H. Dual Concrete Meter Boxes

C.H. Dual Lid

C.H. Dual Lid
Description:

Solid Cast Iron Lid

Design Use: Fits C.H. Dual Box or 12 Series. For heavy traffic use.

Weights:
25 lbs.
C.H. Dual Lid

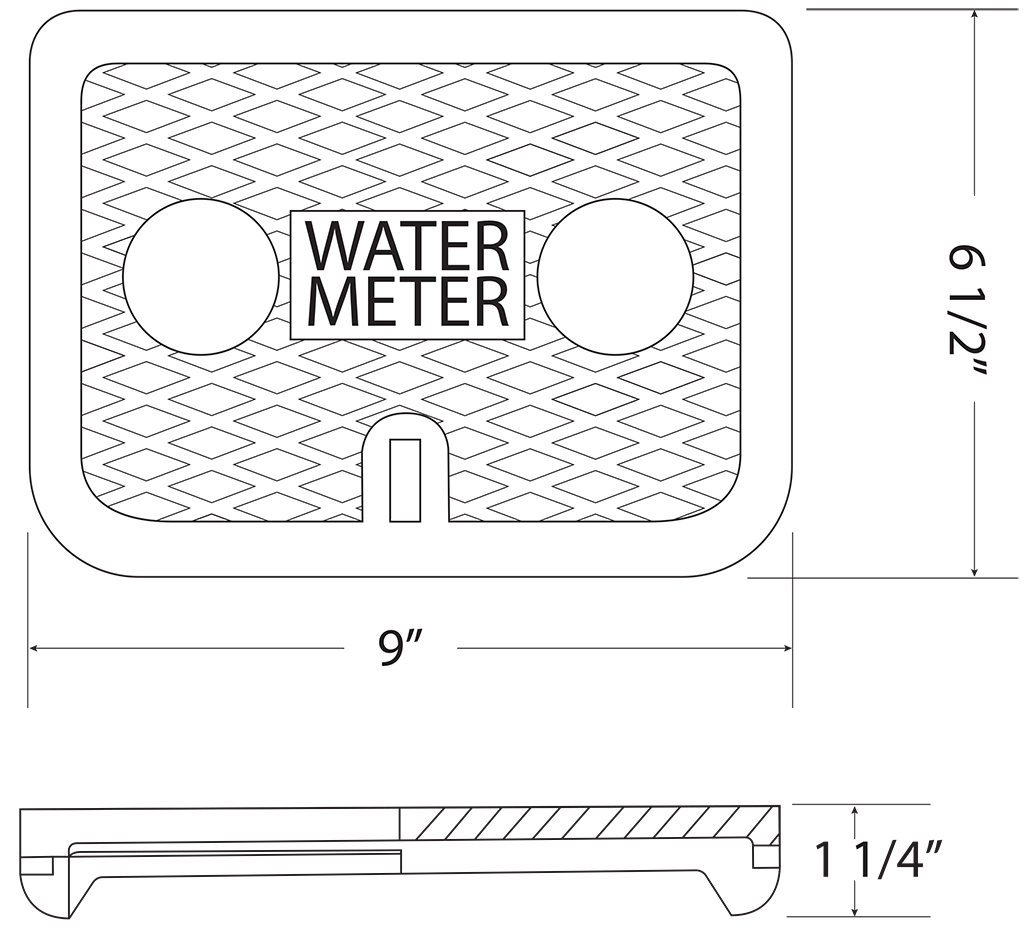

Dual Reader (T.R.)

Dual Reader (T.R.)
Description:

Cast Iron Reader w/a pair of 2” Holes

Design Use: Fits all Dual Lids. For Dual Touch Read Meters.

Weights:
4 lbs.
Dual Reader (T.R.)

Dual Reader Lid

Dual Reader Lid
Description:

Cast Iron Dual Reader

Design Use: Fits all Dual Lids

Weights:
4.5 lbs.
Dual Reader Lid

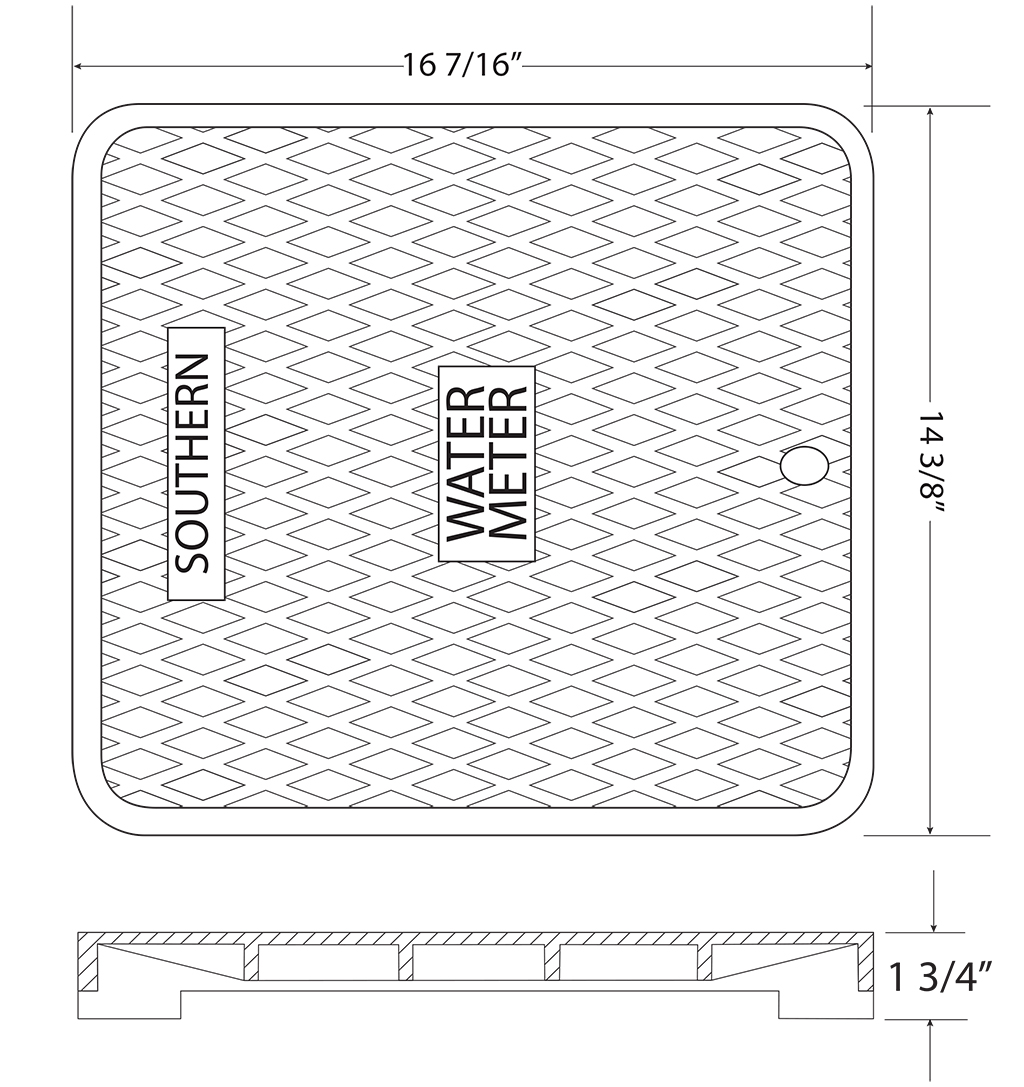

T. Dual Lid

T. Dual Lid
Description:

Solid Cast Iron Lid

Design Use: Fits C.H. Dual Box or 12 Series. For heavy traffic use.

Weights:
22 lbs.
T. Dual Lid

T.H. Dual

T.H. Dual
Description:

Cast Iron Lid w/Cast Iron Reader

Design Use: Fits C.H. Dual Box or 12 Series. For heavy traffic use.

Weights:
20 lbs.
T.H. Dual

C.H. 78 Concrete Box

C.H. 78 Concrete Box
Description:

Solid oval concrete box with a C.I. ring cast into the top of the box. This box is designed for use in clean-out, but can be used for other means.

Weights:
Box-53 lbs.
Lid - 13 lbs.
Pallet Quantities:
27/Pallet
C.H. 78 Concrete Box

T. 2” Lid

 T. 2” Lid
Description:

Solid 2-Piece Cast Iron Lid

Design Use: Fits C.H. 2” Box or 65 Series. For use in heavy traffic areas.

Weights:
50 lbs.
 T. 2” Lid

C.H. 2” Concrete Meter Box

C.H. 2” Concrete Meter Box
Description:

For housing 2” meter and shut-off (compatible to the 65 Series). The meter can be removed and repaired without disturbing the meter box. All boxes are made of lightweight aggregate, cement, and sand for easier handling and maximum strength. This box has a skid resistant top.

Weights:
12” Depth – 172 lbs.
15” Depth – 191 lbs.
Pallet Quantities:
12” Depth – 8/Pallet
15” Depth – 6/Pallet
C.H. 2” Concrete Meter Box

C.H. 2” Lid

C.H. 2” Lid
Description:

Concrete Lid w/Cast Iron Reader

Design Use: Fits C.H. 2” Box or 65 Series

All concrete covers reinforced by wire frame above pin.

Weights:
63.5 lbs.
C.H. 2” Lid

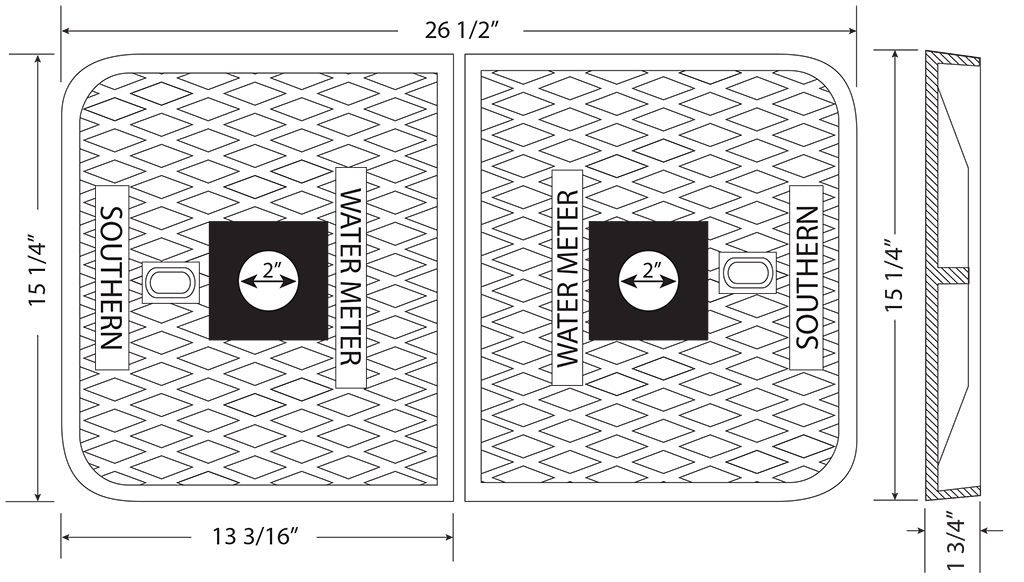

T.-T.R. 2” Lid

T.-T.R. 2” Lid
Description:

Solid 2-Piece Cast Iron Lid w/2” T.R. Hole

Design Use: Fits C.H. 2” Box or 65 Series. For use in touch read or radio read applications. This lid allows for one or both sides to be affixed with T.R. System.

Weights:
50 lbs.
T.-T.R. 2” Lid

T.H. 2” Lid

T.H. 2” Lid
Description:

Cast Iron Lid w/Cast Iron Reader

Design Use: Fits C.H. 2” Box or 65 Series. For heavy traffic use.

Weights:
50 lbs.
T.H. 2” Lid

1-Hole Reader (TR)

1-Hole Reader (TR)
Description:

Cast Iron Reader w/2” Hole

Design Use: Fits all Lids w/Standard Reader. For use with Single Pad Touch Read System

Weights:
2.5 lbs.
1-Hole Reader (TR)

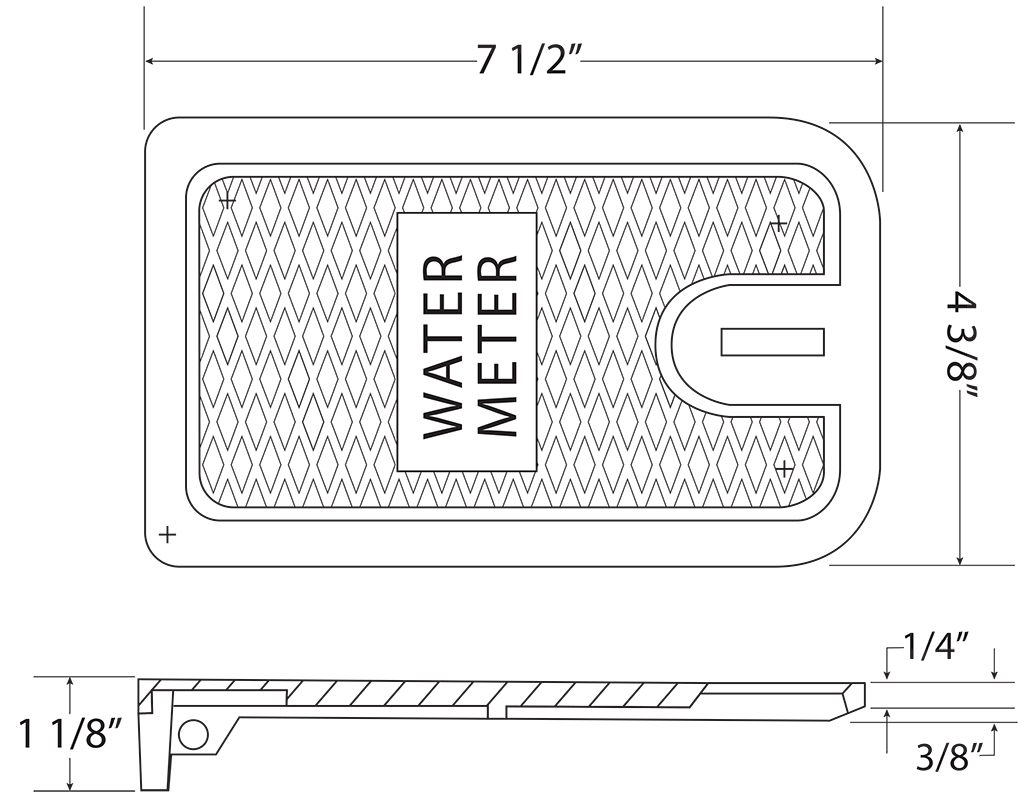

Standard Reader

Standard Reader
Description:

Cast Iron Reader

Design Use: Fits all Standard Reader Lids

Weights:
2.5 lbs.
Standard Reader

P.H. 1"

P.H. 1"
Description:

The P.H. 1” meter box is designed to house a water meter and shut-off for meters from 5/8”x3/4” to 1” in size.  The meter can be removed and repaired without disturbing the meter box.  The box has a woven reinforcement to provide additional strength.  It has strait side walls which allows for easier installation than most other boxes.  The box is also affixed with prefabricated pipe holes (rat holes) so there is no cutting or knocks outs to deal with in the field.  All polymer boxes are made using a mixture of polyester resin and aggregate fillers.  They have a 1” foot at the bottom to provide additional stability in the ground.  Proper installation of meter boxes would include a base of either gravel or rock.

Weights:
12" Depth - 37 lbs.
Pallet Quantities:
12" Depth - 20
P.H. 1"

C.H. 16" Square Pad

C.H. 16" Square Pad
Description:

The C.H. 16” Square Valve Box Pad is designed to fit and protect around the top of the valve box.  It eliminates the time consuming process of forming and pouring in the field.  The 16” Square Valve Box Pad is made of lightweight aggregate, cement and sand for easier handling and maximum strength.  It is reinforced with 9 gauge wire.  The pad has a depth of 4”.  The pad has a 9 1/2” diameter hole in the center of the pad.

Weights:
42 lbs.
Pallet Quantities:
36
C.H. 16" Square Pad

C.H. 16” Solid Square Pad

C.H. 16” Solid Square Pad
Description:

The C.H. 16” Solid Square Pad, also known as a pre-cast concrete trust block, was designed to provide a foundation for valves when placed in the ground, but could have many other uses.  The 16” Square Valve Box Pad is made of lightweight aggregate, cement and sand for easier handling and maximum strength.  It is reinforced with 9 gauge wire.  The pad has a depth of 4”.

Weights:
45 lbs.
Pallet Quantities:
36
C.H. 16” Solid Square Pad

Round Valve Box Pad

Round Valve Box Pad
Description:

The Round Valve Box Pad is designed to protect the valve box without the hassle of forming and pouring a pad in the field.  The 24” diameter valve box pad is made of concrete (Type I cement) and is reinforced using 9 gauge wire with an option of #3 rebar (available upon request). It is 4” in deep with a taper down to 2”. The top of the pad has a hole with a diameter of 10” and the hole is tapered through the pad giving it a final bottom diameter of 9 1/2”.  The 24" diameter 6" deep pad in no longer available.

Weights:
80 lbs. (24" Diameter 4" Deep Pad)
Pallet Quantities:
32/ Pallet (24" Diameter 4" Deep Pad)
Round Valve Box Pad

Sewer Cleanout Pads

Sewer Cleanout Pads
Description:

Sewer Cleanout Pads​The 24” x 24” x 4” Pad is made of concrete (Type I cement) with two layers of 9 gauge wire reinforcement. The top of the pad has a 12 1/16” circular recess 3/4” deep which allows the cleanout ring and cover to fit flush with the pad. The remaining 3 1/4” deep hole through the center of the pad is 9 1/4” in diameter which allows for adequate connection from below.

Weights:
110 lbs.
Pallet Quantities:
12/ Pallet
Sewer Cleanout Pads

Valve Box Pads

Valve Box Pads
Weights:
113 lbs.
Pallet Quantities:
12/ Pallet
Valve Box Pads

Vault Panel

Vault Panel
Description:
  • Vault panels come in 3’, 4’, 5’ and 6’ sections (can be mixed)
  • Panels are attached by 3/8” Corner Bolt
  • All panels made of concrete and reinforced with 9 gauge wire
  • Knock out sizes from 3 1/2” to 10”
  • Covers available upon request (steel floor plate)
Weights:
3' Vault Panel - 87 lbs.
4' Vault Panel - 115 lbs.
5' Vault Panel - 131 lbs.
6' Vault Panel - 168 lbs.
Pallet Quantities:
All panels come 12 to a pallet.
Vault Panel

AJ FHL1 Hydrant Lock (A & J Meter Service, Inc.)

AJ FHL1 Hydrant Lock
Description:

The AJ FHL1 is a simple design hydrant lock to deter unauthorized individuals from tampering with the operating nut on a fire hydrant. The locking device is constructed to accommodate either a conventional or barrel lock, which will allow a system to remain uniform. The FHL1 works simply by securing the cover to the operating nut device with a pin. This will allow the cover to rotate freely around the operating nut device so that the operating nut can’t be engaged. American made product.

AJ FHL1 Hydrant Lock
AJ FHL1 Hydrant Lock

AJ-4 Locking Device (A & J Meter Service, Inc.)

AJ-4 3/4” Lock / AJ-4 1” Lock
Description:

The AJ-4 Locking Device is designed to deter tampering with meter valves.  It is made of a corrosion resistant material (cast aluminum) with a 3/16” proof chain affixed.  The chain will accommodate either a barrel lock or padlock.  It is available in either ¾” or 1”.  American made product.

AJ-4 3/4” Lock

AJ-4 1” Lock

AJ-4 Locking Device

METER SIGHT SCOPES (A & J Meter Service, Inc.)

3" Diameter Scopes (18",24",36" and 48" Length) / 2" Diameter Scopes (18",24",36" and 48" Length)
Description:

Designed to read meters through muddy or discolored water. Let water filled meter pits become a problem of the past with the meter sight scope. Made of transparent materials to let light inside and down to the water meter. Scopes affixed with a chain for easy carry.

Meter glass must be wiped free of mud or other obstructions prior to use. The use of a flashlight alongside of the meter scope may be required with murky water or insufficient outside light.

3" Diameter Scopes - 3"x18", 3"x24", 3"x36", 3"x48"

2" Diameter Scopes - 2"x18", 2"x24", 2"x36", 2"x48"

METER SIGHT SCOPES
METER SIGHT SCOPES

1” C.T.S. INSERT (A & J Meter Service, Inc.)

3/4” C.T.S. Insert  1” C.T.S. Insert
Description:

Insert Stiffeners: Inserts are designed to reinforce 3/4” CTS (copper tube size) and 1” CTS polyethylene tubing. They are available in either plastic or stainless steel and are flared on the end for a flush fit.

Quantities:  100/bag ¾”
                     50/bag 1”

3/4” C.T.S. Insert  1” C.T.S. Insert

3/4” C.T.S. INSERT (A & J Meter Service, Inc.)

3/4” C.T.S. Insert  1” C.T.S. Insert
Description:

Insert Stiffeners: Inserts are designed to reinforce 3/4” CTS (copper tube size) and 1” CTS polyethylene tubing. They are available in either plastic or stainless steel and are flared on the end for a flush fit.

3/4” C.T.S. Insert

1” C.T.S. Insert

3/4” C.T.S. Insert  1” C.T.S. Insert

T. TR Solid Dual Lid

Description:

Solid cast iron lid with 2 - 2" diameter holes for either a touch read or radio read system.  This lid is designed to fit a dual (12 Series) box.  (99 available for sale -- Call for pricing)

Weights:
25 Lbs.
Pallet Quantities:
50

T. TR Solid 2" Lid

Description:

Solid cast iron lid with a 2" hole for either radio read or touch read.  Lid is designed to fit in a 2 inch (65 Series) box.  (209 available for sale -- Call for pricing)

Weights:
45 Lbs.
Pallet Quantities:
25

P.H. 1 1/2"

P.H. 1 1/2"
Description:

The P.H. 1 1/2” meter box is designed to house water meters from 5/8”x3/4” to 2”.  The meter can be removed and repaired without disturbing the meter box.  The box has a woven reinforced to provide additional strength.  It has strait side walls which allows for easier installation than most other boxes.  The box is also affixed with prefabricated pipe holes (rat holes) so there is no cutting or knocks outs to deal with in the field.  All polymer boxes are composed of a polyester resin and aggregate fillers.  They have a 1” foot at the bottom for additional stability in the ground.  Proper installation of meter boxes would include a base of either gravel or rock.  (800 Boxes and Lids available for sale -- Call for pricing)

Weights:
12" Depth - 48lbs.
Pallet Quantities:
12" Depth - 15
P.H. 1 1/2"
